Product name:Standard 8 type self supporting central tube type optical cable (GYXTC8S)
Product categories:outdoor optical cable
Delivery time:2016-10-28
Check the number:
Product introduction

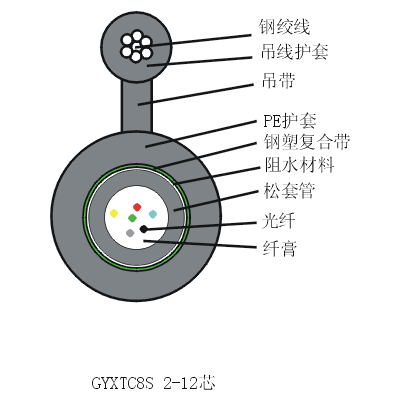

Standard 8 - type self - through central tube type optical cable is the structure of the single mode or multimode fiber into the high modulus of plastic made of loose tube, the casing filled with water blocking compounds. The cable core is the center of the casing, casing with double coated steel strip longitudinal (wrinkles) package, water blocking middle strip and loose tube to ensure the cable compact and longitudinal water blocking, and placed in parallel with the strand and squeeze 8 fonts into cable sheathing.
Product features:
Precise control of the length of the fiber ensures that the optical cable has a good tensile and temperature characteristics
- cannola material itself has hydrolysis resistance and high strength good, special tube filling compound ensure critical protection of fiber
When erecting, the steel wire is not required to be installed, and the construction speed is improved 3-4 times.
Adopt the following measures to ensure the waterproof performance of the optical cable
Loose tube positioned outside the water blocking
Loose tube filled with special fiber paste
Good water resistance material to prevent the longitudinal seepage of optical cable
Technical parameter:
Steel wire specifications according to the required tensile strength design, generally 3.6mm.
