Product description:

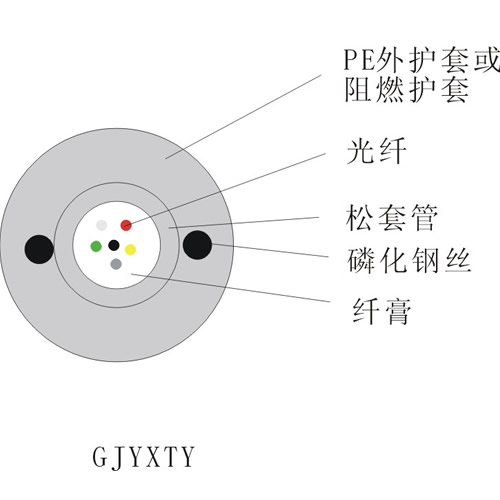

GJYXTY central tube type indoor and outdoor optical cable structure is a single mode or multimode fiber into a loose tube made of high modulus plastic, the casing filled with water blocking compounds. External use of 2 phosphate steel wire parallel with the sheath at the same time out of the cable, the sheath material can be ordinary MDPE jacket material, also can be a flame retardant sheath material.

Product features:

The vertical seepage - preventing cable ointment

2 parallel steel wires to ensure the tensile strength of the optical cable

PE jacket has a good anti ultraviolet radiation performance and resistance to environmental stress cracking performance, flame retardant sheath has a good flame retardant performance, to meet the requirements of indoor use

Small diameter, light weight, low cost, easy to lay

Technical parameter:

Number of optical cable core diameter of optical cable weight allowed tensile allowable press force

(mm) (kg/km) long / short term (N) long / short term (N/10cm)

1～6 5.4 32 200/660 300/1000

1 ~ 65.432 300/1000 200/660

Use temperature: 40 DEG C 60

Bending radius: static 10 times the diameter of cable

Dynamic 20 times optical cable outside diameter
